Corrections
opticam provides a simple interface for creating and applying image corrections via the opticam.correctors subpackge. Currently, corrections are limited to flat-fielding and dark noise.
In this notebook, I will demonstrate how to create a correction image, and how this correction image can be incorporated into the reduction process.
Flat-fielding
First, let’s take a look at flat-field corrections.
Generating Synthetic Data and Flats
Before applying flat-field corrections, we need some flat-field images. For this tutorial, I will use the generate_flats() routine to generate some synethetic flats. I will also generate some synthetic observations using generate_observations() with circular_aperture=True:
[1]:
from pathlib import Path
import opticam
out_dir = Path('out')
obs_dir = out_dir / 'data' / 'observations'
flats_dir = out_dir / 'calibration_images' / 'flats'
opticam.generate_observations(
out_directory=obs_dir,
n_images=10, # number of images per camera
circular_aperture=True, # impose circular aperture shadow on images
)
opticam.generate_flats(
out_directory=flats_dir,
n_flats=5, # number of flats per camera
)
[OPTICAM] variable source is at (131, 115)
[OPTICAM] variability RMS: 0.02 %
[OPTICAM] variability frequency: 0.135 Hz
[OPTICAM] variability phase lags:
[OPTICAM] g-band: 0.000 radians
[OPTICAM] r-band: 1.571 radians
[OPTICAM] i-band: 3.142 radians
Generating observations: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
Generating flats: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:01<00:00]
Let’s check the files in the newly created flats directory:
[2]:
flat_paths = sorted(list(flats_dir.glob('*')))
flat_paths
[2]:
[PosixPath('out/calibration_images/flats/g-band_image_0.fits.gz'),
PosixPath('out/calibration_images/flats/g-band_image_1.fits.gz'),
PosixPath('out/calibration_images/flats/g-band_image_2.fits.gz'),
PosixPath('out/calibration_images/flats/g-band_image_3.fits.gz'),
PosixPath('out/calibration_images/flats/g-band_image_4.fits.gz'),
PosixPath('out/calibration_images/flats/i-band_image_0.fits.gz'),
PosixPath('out/calibration_images/flats/i-band_image_1.fits.gz'),
PosixPath('out/calibration_images/flats/i-band_image_2.fits.gz'),
PosixPath('out/calibration_images/flats/i-band_image_3.fits.gz'),
PosixPath('out/calibration_images/flats/i-band_image_4.fits.gz'),
PosixPath('out/calibration_images/flats/r-band_image_0.fits.gz'),
PosixPath('out/calibration_images/flats/r-band_image_1.fits.gz'),
PosixPath('out/calibration_images/flats/r-band_image_2.fits.gz'),
PosixPath('out/calibration_images/flats/r-band_image_3.fits.gz'),
PosixPath('out/calibration_images/flats/r-band_image_4.fits.gz')]
We have a total of 15 flats in three different filters, matching the three filters of our synthetic observations.
Let’s take a look at one of our newly-generated flats:
[3]:
from astropy.io import fits
from astropy.visualization import simple_norm
from matplotlib import pyplot as plt
import numpy as np
# open the first flat field image
with fits.open(flat_paths[0]) as hdul:
print(repr(hdul[0].header))
flat = np.array(hdul[0].data)
# plot the flat field image
fig, ax = plt.subplots(tight_layout=True)
im = ax.imshow(
flat,
norm=simple_norm(
flat,
stretch="log",
),
origin="lower",
cmap="Greys",
)
fig.colorbar(im)
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
SIMPLE = T / conforms to FITS standard
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
EXTEND = T
FILTER = 'g '
EXPOSURE= 0.05
BINNING = '4x4 '
GAIN = 1.0
INSTRUME= 'OPTICAM '
UT = '2024-01-01 00:00:00'

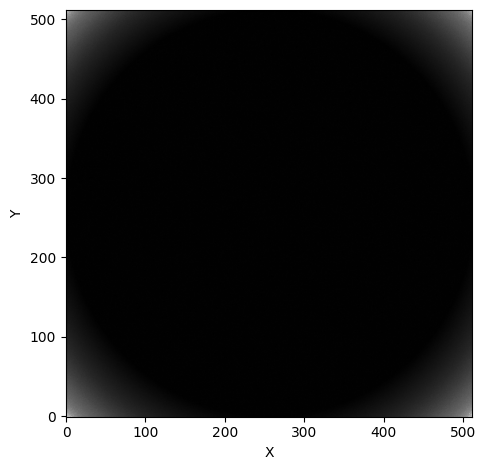

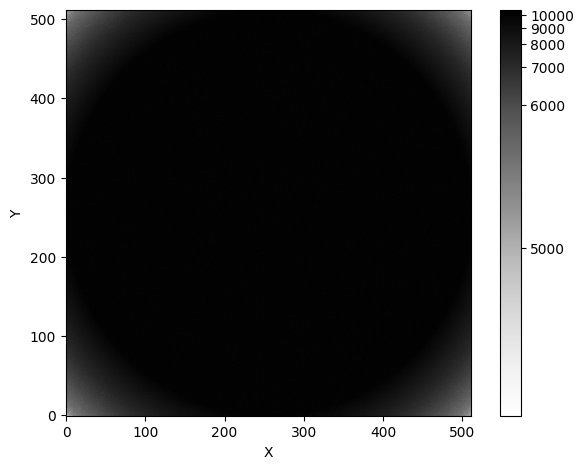

These synthetic flats show a circular shadow. You might imagine that this shadow was cast by the telescope’s circular aperture.

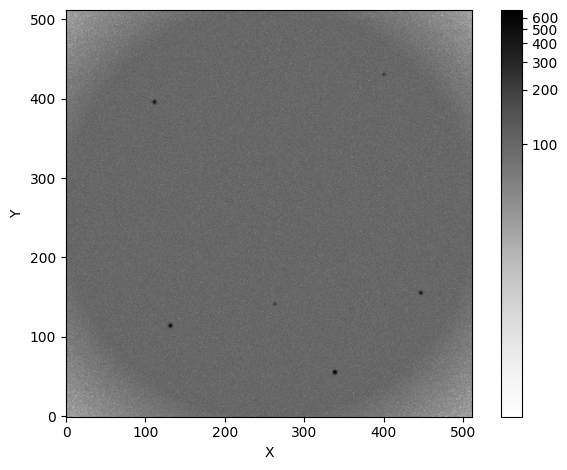

We see a similar shadow in the synthetic observations:
[4]:
# get the first image
image_paths = sorted(list(obs_dir.glob('*')))
# open the image
with fits.open(image_paths[0]) as hdul:
image = np.array(hdul[0].data)
# plot the image
fig, ax = plt.subplots(tight_layout=True)
im = ax.imshow(
image,
norm=simple_norm(
image,
stretch="log",
),
origin="lower",
cmap="Greys",
)
fig.colorbar(im)
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
Just like in the flats, we see a circular shadow at the corners of the image.
Ignoring flat-field corrections
Let’s see what happens if we neglect flat-field corrections:
[5]:
reducer = opticam.Reducer(
data_directory=obs_dir, # path to the simulated data
out_directory=out_dir / 'reduced' / 'no_flats', # path to where output will be saved
show_plots=True,
)
reducer.create_catalogs()
[OPTICAM] out/reduced/no_flats not found, attempting to create ...
[OPTICAM] out/reduced/no_flats created.
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] Checking instrument OPTICAM_MX.
[OPTICAM] OPTICAM_MX sucessfully passed all checks.
[OPTICAM] Parsing file headers: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] Binning: 4x4
[OPTICAM] Filters: 1:g, 2:r, 3:i
[OPTICAM] 10 1:g images.
[OPTICAM] 10 2:r images.
[OPTICAM] 10 3:i images.

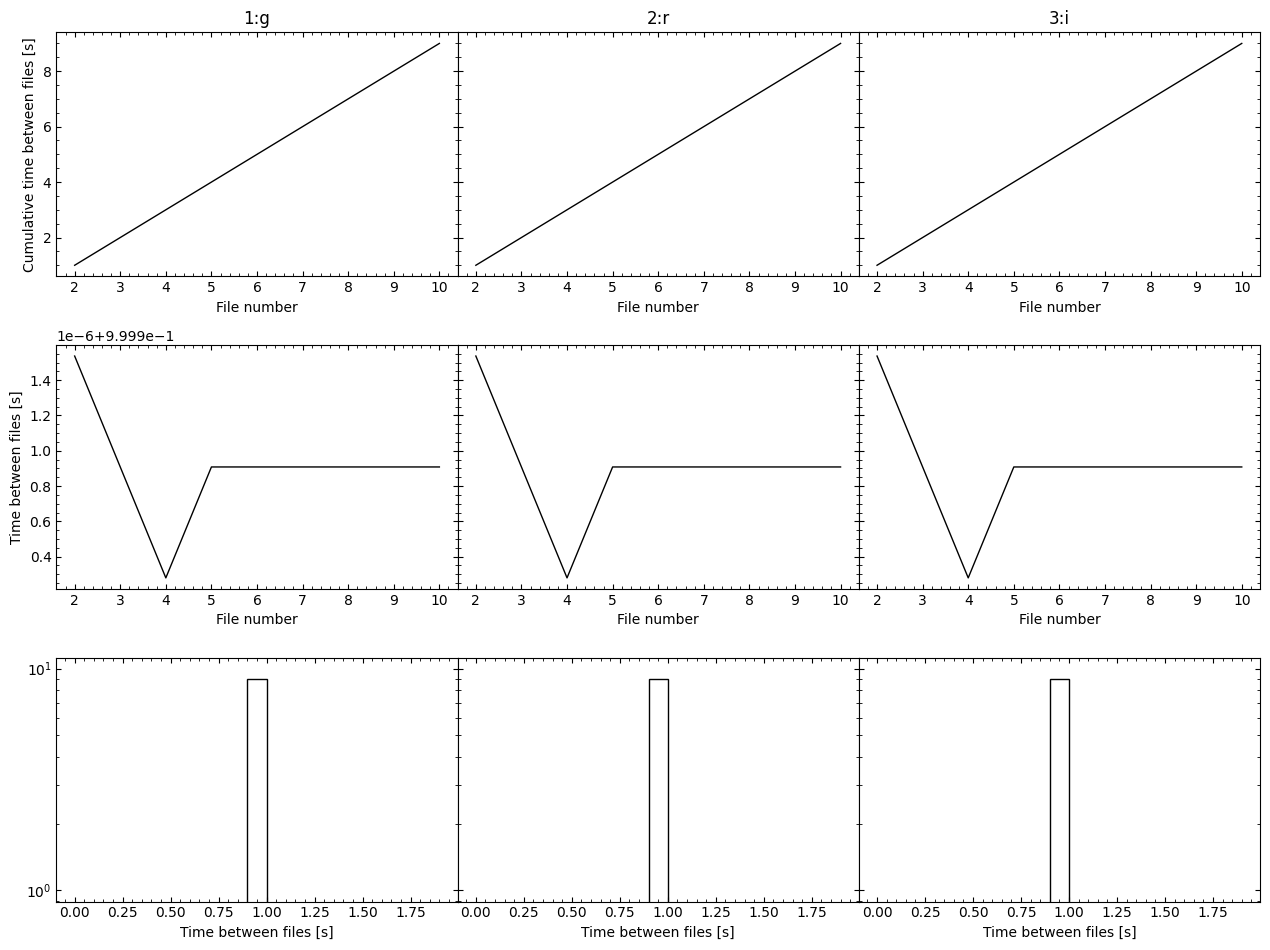

[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/no_flats/diag/header_times.pdf.
[OPTICAM] Creating source catalogs.
[OPTICAM] Aligning 1:g images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:01<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning 2:r images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning 3:i images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:01<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/no_flats/cat/catalogs.pdf.

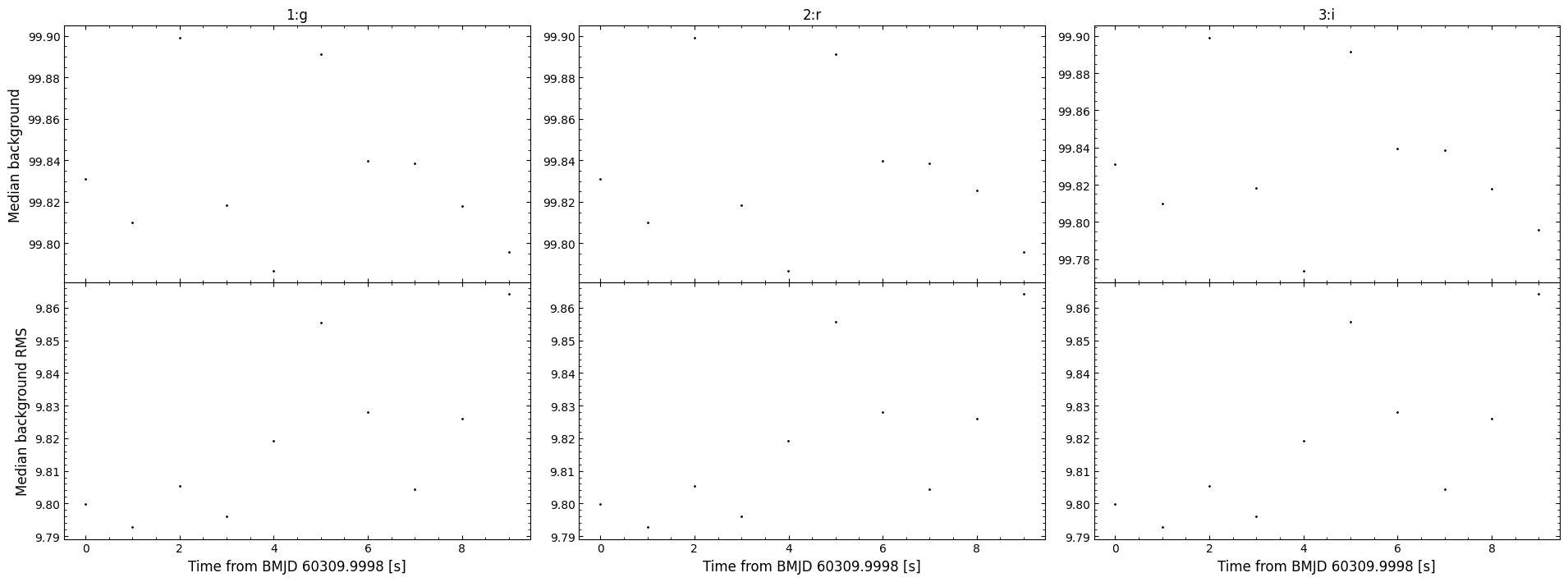

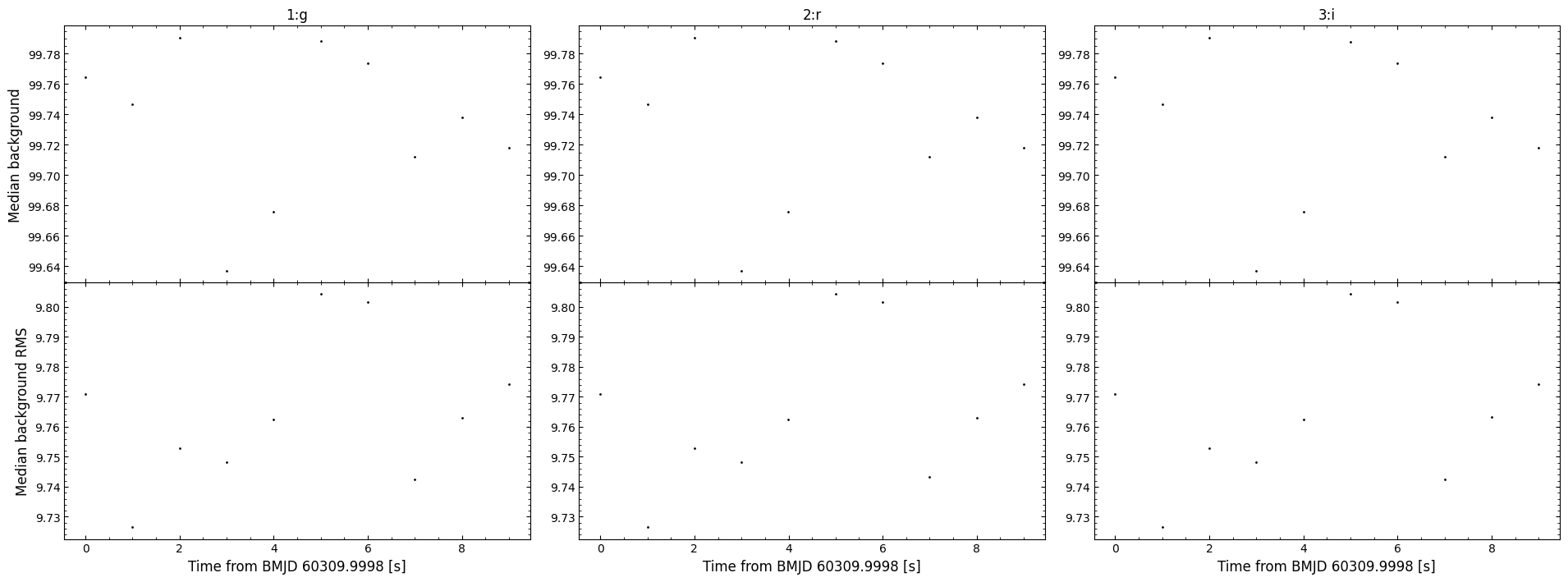

[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/no_flats/diag/background.pdf.

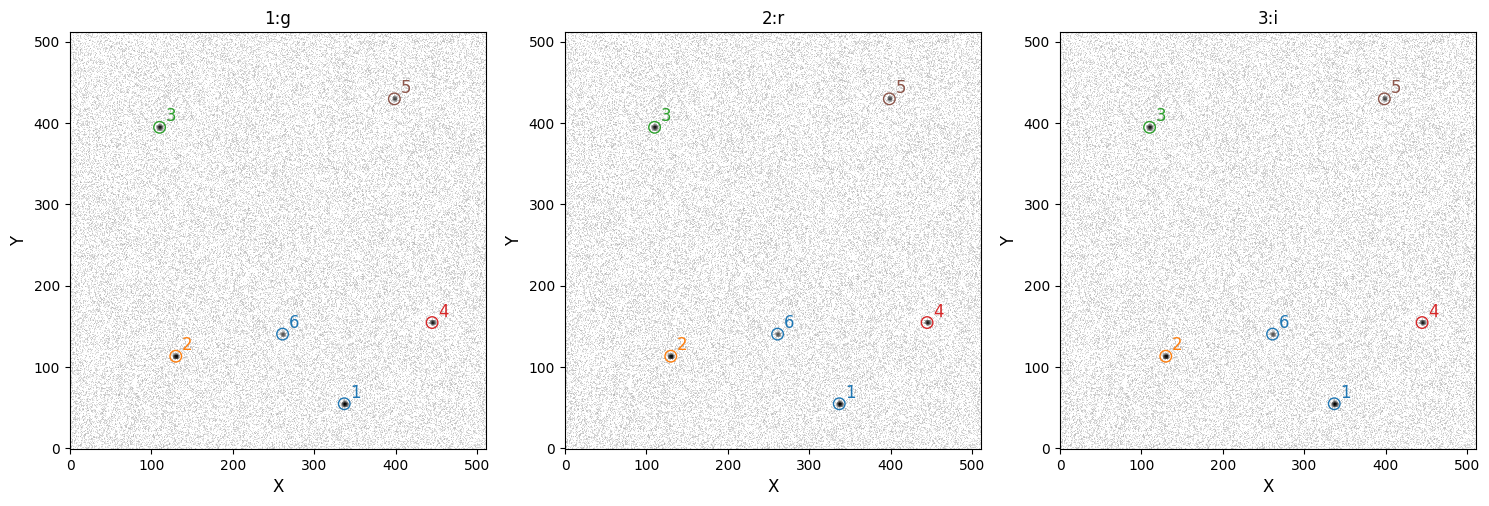

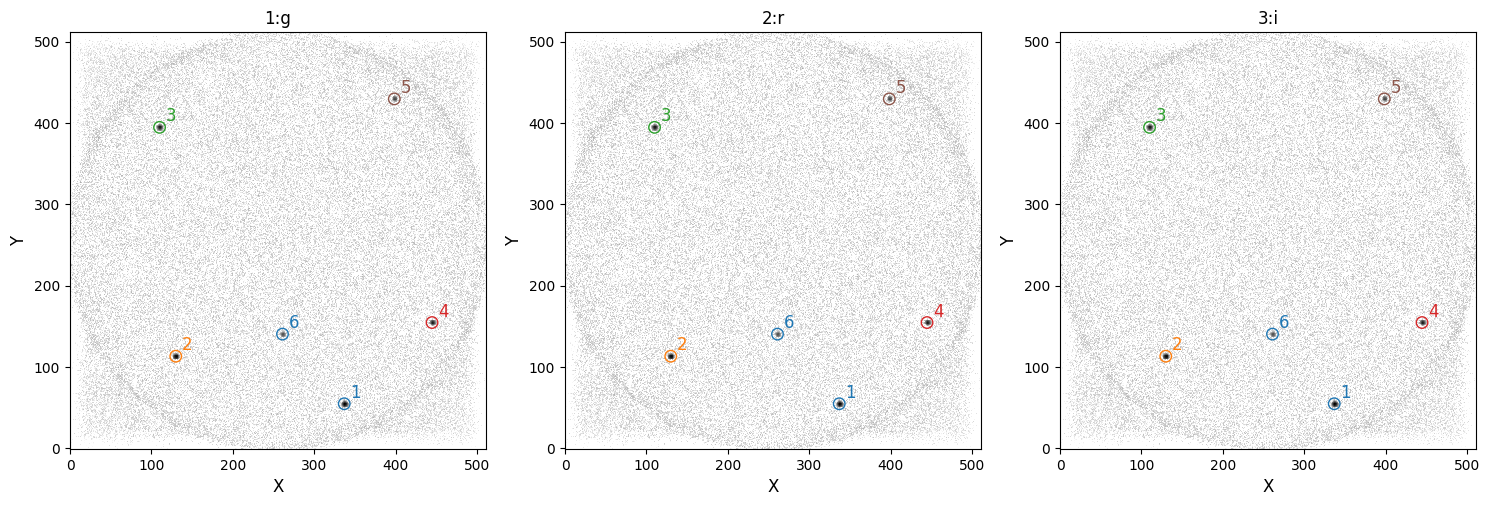

As we can see, systematic artefacts stack in the catalog image. Not only can these artefacts skew flux measurements, but they may also lead to spurious source detections. It’s therefore important to correct for these effects.
Applying Flat-field Corrections
In opticam, flat-field corrections are handled by an opticam.FlatFieldCorrector object:
[6]:
flat_corrector = opticam.FlatFieldCorrector(
out_directory=out_dir / 'correctors' / 'manual_flats', # where the master flat field images will be stored
data_directory=flats_dir, # where the flat field images are stored
)
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 5 1:g flat-field images.
[OPTICAM] 5 3:i flat-field images.
[OPTICAM] 5 2:r flat-field images.
When defining a FlatFieldCorrector object, an out_directory must be specified. This is the directory to which any output files (e.g., the master flats) will be written.
After creating a FlatFieldCorrector instance, you will be able to see how many flats have been detected for each filter. In this case, we can see that each filter has five flat-field images.
Creating Master Flats (Long Way)
Now that we have a FlatFieldCorrector instance, we can either create master flats manually, or pass the FlatFieldCorrector object to a Reducer instance, which will automatically create the master flats for us as required. In this example, let’s create the master flats manually using the create_master_images() method:
[7]:
flat_corrector.create_master_images()
[OPTICAM] Master flat-field image(s) created.
[OPTICAM] Master flat-field image(s) saved to out/correctors/manual_flats/master_flats.fits.gz.
For convenience, the location of the resulting master flats file is displayed once it has been created. This is a single FITS file that may contain several master flats. In this case, it should contain three images.
We can either read the master flats from their new directory, or access them directly from the FlatFieldCorrector instance using the master_images attribute. Let’s first look at the file:
[8]:
from astropy.io import fits
with fits.open(flat_corrector.master_image_path) as hdul:
for hdu in hdul:
print(repr(hdu.header))
print()
SIMPLE = T / conforms to FITS standard
BITPIX = 8 / array data type
NAXIS = 0 / number of array dimensions
EXTEND = T
COMMENT This FITS file contains master flat-field images and their corresponding
COMMENT variances for each filter.
XTENSION= 'IMAGE ' / Image extension
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
PCOUNT = 0 / number of parameters
GCOUNT = 1 / number of groups
FILTER = '1:g '
EXTNAME = 'DATA ' / extension name
XTENSION= 'IMAGE ' / Image extension
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
PCOUNT = 0 / number of parameters
GCOUNT = 1 / number of groups
FILTER = '1:g '
EXTNAME = 'VARIANCE' / extension name
XTENSION= 'IMAGE ' / Image extension
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
PCOUNT = 0 / number of parameters
GCOUNT = 1 / number of groups
FILTER = '3:i '
EXTNAME = 'DATA ' / extension name
XTENSION= 'IMAGE ' / Image extension
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
PCOUNT = 0 / number of parameters
GCOUNT = 1 / number of groups
FILTER = '3:i '
EXTNAME = 'VARIANCE' / extension name
XTENSION= 'IMAGE ' / Image extension
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
PCOUNT = 0 / number of parameters
GCOUNT = 1 / number of groups
FILTER = '2:r '
EXTNAME = 'DATA ' / extension name
XTENSION= 'IMAGE ' / Image extension
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
PCOUNT = 0 / number of parameters
GCOUNT = 1 / number of groups
FILTER = '2:r '
EXTNAME = 'VARIANCE' / extension name
In the master flats file, we can see that the first header-data unit (HDU) is blank. The remaining HDUs contain the master flat-field images for each filter. Let’s now take a look at one of these master flats using the master_images attribute of the FlatFieldCorrector instance:
[9]:
master_flat = flat_corrector.master_images['1:g']
fig, ax = plt.subplots(tight_layout=True)
im = ax.imshow(
master_flat,
norm=simple_norm(
master_flat,
stretch="log",
),
origin="lower",
cmap="Greys",
)
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
Performing Flat-field Corrections
Let’s now use our FlatFieldCorrector instance to correct an image using its correct() method. correct() takes an image array and its corresponding filter as input, and then returns the corrected image and the variance introduced from the correction (used in error propagation):
[10]:
with fits.open(image_paths[0]) as hdul:
fltr = hdul[0].header['FILTER']
image = np.array(hdul[0].data)
if fltr == 'g':
camera = '1'
elif fltr == 'r':
camera = '2'
elif fltr == 'i':
camera = '3'
# apply the flat-field correction
corrected_image, flat_var = flat_corrector.correct(image, camera=camera, fltr=fltr)
fig, axes = plt.subplots(
ncols=2,
tight_layout=True,
figsize=(10, 5),
)
axes[0].imshow(
image,
norm=simple_norm(
image,
stretch="log",
),
origin="lower",
cmap="Greys",
)
axes[0].set_title('Original image')
axes[1].imshow(
corrected_image,
norm=simple_norm(
corrected_image,
stretch="log",
),
origin="lower",
cmap="Greys",
)
axes[1].set_title('Corrected image')
for ax in axes:
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()

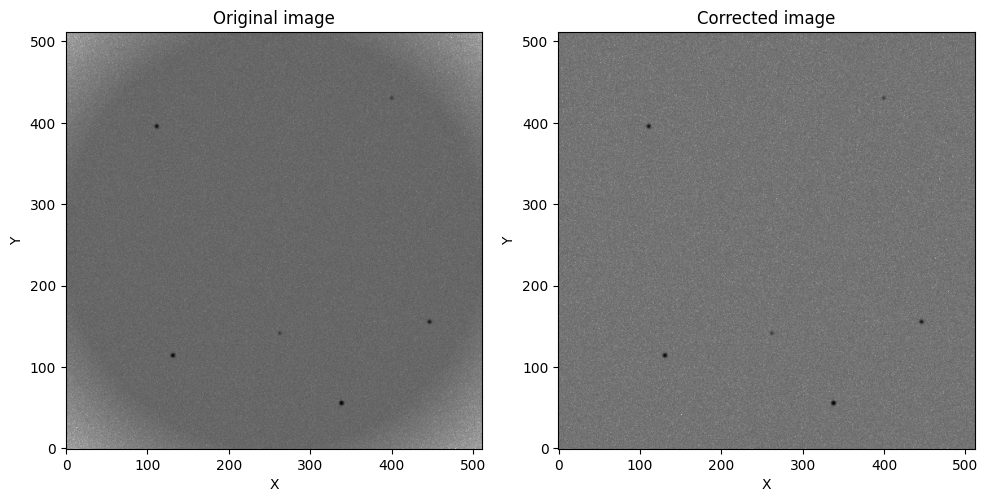

As we can see, the aperture shadow has been successfully removed!
We can automate the process of applying master flats by passing an opticam.FlatFieldCorrector instance to opticam.Reducer:
[11]:
reducer = opticam.Reducer(
data_directory=obs_dir, # path to the simulated data
out_directory=out_dir / 'reduced' / 'manual_flats', # path to where output will be saved
show_plots=True,
flat_corrector=flat_corrector, # pass the flat field corrector
)
[OPTICAM] out/reduced/manual_flats not found, attempting to create ...
[OPTICAM] out/reduced/manual_flats created.
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] Checking instrument OPTICAM_MX.
[OPTICAM] OPTICAM_MX sucessfully passed all checks.
[OPTICAM] Parsing file headers: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] Binning: 4x4
[OPTICAM] Filters: 1:g, 2:r, 3:i
[OPTICAM] 10 1:g images.
[OPTICAM] 10 2:r images.
[OPTICAM] 10 3:i images.
[OPTICAM] FlatFieldCorrector sucessfully passed all checks.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/manual_flats/diag/header_times.pdf.
After initialising our Reducer, we are told that our FlatFieldCorrector successfully passed all checks. This is a safety measure to ensure that the binning modes and filters of the flat-field images match those of the science images. Let’s now create source catalogs:
[12]:
reducer.create_catalogs()
[OPTICAM] Creating source catalogs.
[OPTICAM] Aligning 1:g images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning 2:r images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning 3:i images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/manual_flats/cat/catalogs.pdf.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/manual_flats/diag/background.pdf.
As we can see, the catalog images no longer show an aperture shadow.
Creating Master Flats (Short Way)
We can create master flat-field images more easily by letting opticam handle the master flat creation automatically:
[13]:
auto_flat_corrector = opticam.FlatFieldCorrector(
out_directory=out_dir / 'correctors' / 'auto_flats', # where the master flat field images will be stored
data_directory=flats_dir, # where the flat field images are stored
)
auto_reducer = opticam.Reducer(
data_directory=obs_dir, # path to the simulated data
out_directory=out_dir / 'reduced' / 'auto_flats', # path to where output will be saved
show_plots=True,
flat_corrector=auto_flat_corrector, # pass the flat field corrector
)
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 5 1:g flat-field images.
[OPTICAM] 5 3:i flat-field images.
[OPTICAM] 5 2:r flat-field images.
[OPTICAM] out/reduced/auto_flats not found, attempting to create ...
[OPTICAM] out/reduced/auto_flats created.
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] Checking instrument OPTICAM_MX.
[OPTICAM] OPTICAM_MX sucessfully passed all checks.
[OPTICAM] Parsing file headers: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] Binning: 4x4
[OPTICAM] Filters: 1:g, 2:r, 3:i
[OPTICAM] 10 1:g images.
[OPTICAM] 10 2:r images.
[OPTICAM] 10 3:i images.
[OPTICAM] FlatFieldCorrector sucessfully passed all checks.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/auto_flats/diag/header_times.pdf.
Currently, the flat corrector has not been used, and so if we check for the master flats we will find that they don’t yet exist:
[14]:
auto_reducer.flat_corrector.master_image_path.is_file()
[14]:
False
However, if we initialise the catalog we will see that the master flats will be created automatically so that they can be applied to the images:
[15]:
auto_reducer.create_catalogs()
[OPTICAM] Creating source catalogs.
[OPTICAM] 1:g master flat-field image not found. Attempting to create.
[OPTICAM] Master flat-field image(s) created.
[OPTICAM] Master flat-field image(s) saved to out/correctors/auto_flats/master_flats.fits.gz.
[OPTICAM] Aligning 1:g images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning 2:r images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning 3:i images: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 10 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/auto_flats/cat/catalogs.pdf.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/auto_flats/diag/background.pdf.
As we can see, the master flats were automatically created so that the corrections could be applied when needed. For completeness, let’s also check if the master flats directory now exists:
[16]:
auto_reducer.flat_corrector.master_image_path.is_file()
[16]:
True
With just a few lines of code, we have created master flats and used them to correct our observation images!
Dark noise
OPTICAM-MX images include the dark current in their headers, allowing the dark noise to be calculated by multiplying the dark current by the exposure time. If you’re using opticam to reduce data from OPTICAM-MX data, or data from an instrument that measures the dark current, then you can subtract the dark noise by passing an empty DarkNoiseCorrector instance to Reducer:
[17]:
dark_current_reducer = opticam.Reducer(
data_directory=obs_dir, # path to the simulated data
out_directory=out_dir / 'reduced' / 'dark_current', # path to where output will be saved
show_plots=True,
flat_corrector=auto_flat_corrector, # pass the flat field corrector
dark_corrector=opticam.DarkNoiseCorrector(
instrument=opticam.OPTICAM_MX(),
)
)
[OPTICAM] out/reduced/dark_current not found, attempting to create ...
[OPTICAM] out/reduced/dark_current created.
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] Checking instrument OPTICAM_MX.
[OPTICAM] OPTICAM_MX sucessfully passed all checks.
[OPTICAM] Parsing file headers: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] Binning: 4x4
[OPTICAM] Filters: 1:g, 2:r, 3:i
[OPTICAM] 10 1:g images.
[OPTICAM] 10 2:r images.
[OPTICAM] 10 3:i images.
[OPTICAM] DarkNoiseCorrector sucessfully passed all checks.
[OPTICAM] FlatFieldCorrector sucessfully passed all checks.
[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/dark_current/diag/header_times.pdf.
Note that we have passed an Instrument instance to DarkNoiseCorrector, but no directories. By doing this, opticam will attempt to perform dark noise corrections using the exposure-integrated dark current; as we can see, the DarkNoiseCorrector instance passed all checks in this case. For instruments that do not report a dark current value, we’ll need to use DarkNoiseCorrector to create a master dark image, which will then be subtracted from science images to remove the dark
noise. The interface for opticam.DarkNoiseCorrector is almost identical to that of opticam.FlatFieldCorrector in this regard.
Generating Synthetic Darks
To demonstrate how to apply dark noise corrections, we need to generate some dark images. For this example, we’ll assume we have observed faint sources using a long exposure time to allow for a considerable dark noise contribution. I’ll also ignore any randomness in the dark noise contribution for simplicity:
[18]:
import numpy as np
IMG_SIZE = (256, 256)
DARK_FLUX = 30.0 # average exposure-integrated dark current contribution
EXPTIME = 120.0 # exposure time in seconds
FLTR = 'U'
BINNING = '1x1'
for i in range(5):
image = np.zeros(IMG_SIZE) + DARK_FLUX
hdu = fits.PrimaryHDU(image) # image data
hdu.header['FILTER'] = FLTR # the observation filter
hdu.header['BINNING'] = BINNING # the image binning (1x1)
hdu.header['EXPTIME'] = EXPTIME # the exposure time in seconds
hdu.header['INSTRUME'] = 'SYNTHETICAM'
hdu.header['RDNOISE'] = 0.
save_path = out_dir / 'calibration_images' / 'darks' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path / f'image_{i}.fits.gz'
hdu.writeto(file_path, overwrite=True)
Now we have some dark images, we can create a DarkNoiseCorrector. To create a DarkNoiseCorrector, however, we need to define an Instrument: (see the custom instruments tutorial for more details):
[19]:
%%writefile custom_routines.py
from astropy.coordinates import EarthLocation
import opticam
class CustomInstrument(opticam.Instrument):
def __init__(
self,
location = EarthLocation.from_geodetic(
lon=0.0,
lat=0.0,
height=0.0,
),
pixel_scales = {
'SYNTHETICAM': 1.0,
},
):
super().__init__(
location=location,
pixel_scales=pixel_scales,
)
Writing custom_routines.py
Due to compatibility issues, routines defined inside of IPython notebooks cannot be used by multiprocessing (used by opticam). To overcome this issue, we have used the %%writefile magic command to write our CustomInstrument class to a temporary module called custom_routines.py, such that it can be imported by multiprocessing. This is required in Python \(\geq\) 3.14.
[20]:
from custom_routines import CustomInstrument
instrument = CustomInstrument()
dark_corr = opticam.DarkNoiseCorrector(
out_directory=out_dir / 'correctors' / 'darks',
data_directory=out_dir / 'calibration_images' / 'darks',
instrument=instrument,
)
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 5 SYNTHETICAM:U dark images.
We can see that our DarkNoiseCorrector has detected five U-band dark images. Let’s now generate some science images that contain dark noise:
[21]:
from photutils.datasets import load_star_image
# load a noiseless simulated HST image
base_image = np.array(load_star_image().data, dtype=np.float64)[:IMG_SIZE[0], :IMG_SIZE[1]]
base_image /= base_image.max()
base_image *= 100
# add dark noise to the image
noisy_image = base_image + DARK_FLUX
for i in range(5):
hdu.data = noisy_image
hdu.header['FILTER'] = FLTR # the observation filter
hdu.header['BINNING'] = BINNING # the image binning (1x1)
hdu.header['EXPTIME'] = EXPTIME # the exposure time in seconds
hdu.header['RA'] = '0' # pointing of the image
hdu.header['DEC'] = '0' # pointing of the image
hdu.header['GAIN'] = 1.0 # instrument gain
hdu.header['DATE-OBS'] = f'2026-01-01T00:00:0{i}.000' # date of observation
save_path = out_dir / 'data' / 'darks' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path / f'image_{i}.fits.gz'
hdu.writeto(file_path, overwrite=True)
Let’s first take a look at the reference image (i.e., without any dark noise):
[22]:
fig, ax = plt.subplots()
im = ax.imshow(base_image, origin='lower')
fig.colorbar(im)
plt.show()
Now let’s look at one of the noisy images:
[23]:
fig, ax = plt.subplots()
im = ax.imshow(noisy_image, origin='lower')
fig.colorbar(im)
plt.show()

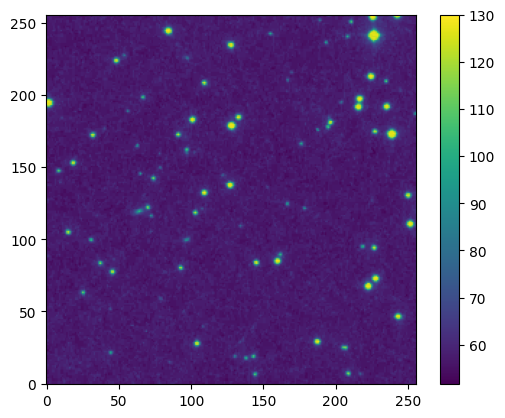

While there is no obvious difference from the image alone, because we’re assuming uniform dark noise, we can see from the colorbar that the dark noise has increased the flux. Let’s compare the fluxes between the two images more explicitly:
[24]:
fig, ax = plt.subplots()
ax.hist(
base_image.flatten(),
histtype='step',
bins=100,
label='Reference',
)
ax.hist(
noisy_image.flatten(),
histtype='step',
bins=100,
label='Noisy',
)
ax.set_yscale('log')
ax.legend()
plt.show()
As we can see, the reference image appears to have a median background flux of \(\sim 30\), while the dark noise image has its flux values shifted by the dark flux value of 30. Let’s use our DarkNoiseCorrector to correct this:
[25]:
corrected_image, dark_var = dark_corr.correct(
image=noisy_image,
camera='SYNTHETICAM',
fltr=FLTR,
)
[OPTICAM] SYNTHETICAM:U master dark image not found. Attempting to create.
[OPTICAM] Master dark image(s) created.
[OPTICAM] Master dark image(s) saved to out/correctors/darks/master_darks.fits.gz.
The correct() method of DarkNoiseCorrector returns the corrected image and the dark noise variance:
[26]:
dark_var
[26]:
array([[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
...,
[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.]], shape=(256, 256))
The dark noise variance is zero in this example since our dark images are all identical. In reality, of course, master dark images will have some non-zero variance that will contribute to the photometric error. This is covered in detail in a dedicated notebook.

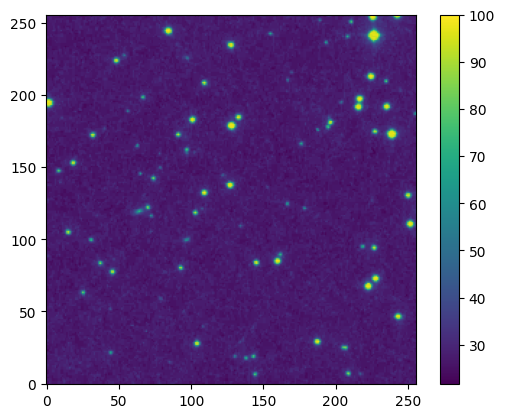

Let’s take a look at the corrected image:
[27]:
fig, ax = plt.subplots()
im = ax.imshow(corrected_image, origin='lower')
fig.colorbar(im)
plt.show()

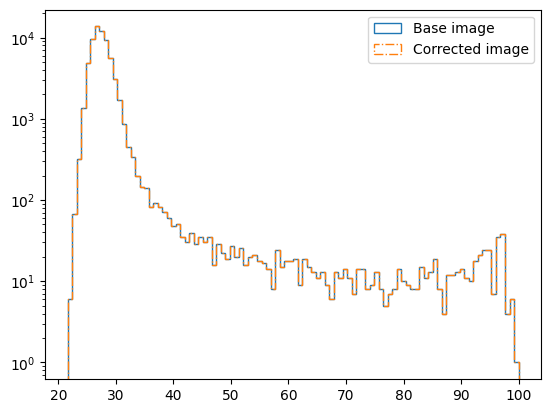

From the image alone, the difference isn’t immediately obvious. Let’s compare the corrected image to the base image more explicitly:
[28]:
fig, ax = plt.subplots()
ax.hist(
base_image.flatten(),
histtype='step',
bins=100,
label='Reference image',
)
ax.hist(
corrected_image.flatten(),
histtype='step',
bins=100,
label='Corrected image',
ls='-.',
)
ax.set_yscale('log')
ax.legend()
plt.show()

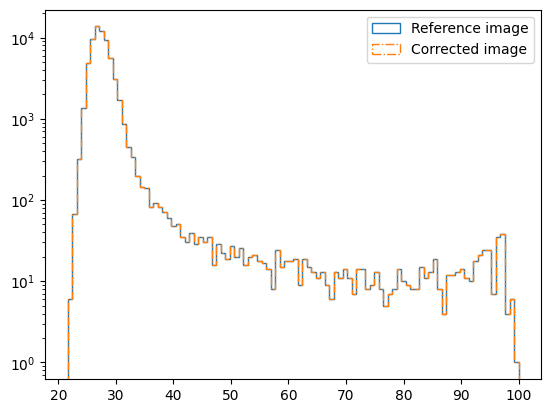

[29]:
assert np.allclose(base_image, corrected_image)
As we can see, the corrected image is now identical to the base image. Of course, in reality noise is random and so it can never be removed perfectly like we have done here. However, this demonstrates how opticam.DarkNoiseCorrector can be used to correct for an instrument’s dark noise.
To then use this dark current corrector to reduce some images, we can pass it to a Reducer instance as we did for the flat-field corrections. However, since these data have not been designed to mimic OPTICAM-MX data, we’ll need to specify custom source identification and background estimation routines:
[30]:
dark_reducer = opticam.Reducer(
data_directory=out_dir / 'data' / 'darks',
out_directory=out_dir / 'reduced' / 'darks',
show_plots=True,
dark_corrector=dark_corr, # pass the dark noise corrector
instrument=instrument,
finder=opticam.DefaultFinder(npixels=8), # specify a custom source finder
background=opticam.DefaultBackground(box_size=16), # specify a custom background estimator
)
dark_reducer.create_catalogs(
max_catalog_sources=50,
n_alignment_sources=50,
)
[OPTICAM] out/reduced/darks not found, attempting to create ...
[OPTICAM] out/reduced/darks created.
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] Checking instrument CustomInstrument.
[OPTICAM] WARNING: CustomInstrument.dark_curr_kw (DARKCURR) is not a valid header keyword for file /tmp/tmptalj6gyx/out/data/darks/image_1.fits.gz extension 0. If no dark current is listed in the image headers, you will need to use a `opticam.DarkNoiseCorrector` instance to correct for dark noise. See https://opticam.readthedocs.io/en/latest/_executed/applying_corrections.html#Dark-noise for details.
[OPTICAM] CustomInstrument sucessfully passed all checks.
[OPTICAM] CustomInstrument triggered a warning during 1 check. Warnings may be ignored provided their caveats are satisfied.
[OPTICAM] Parsing file headers: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:02<00:00]
[OPTICAM] Binning: 1x1
[OPTICAM] Filters: SYNTHETICAM:U
[OPTICAM] 5 SYNTHETICAM:U images.
[OPTICAM] DarkNoiseCorrector sucessfully passed all checks.

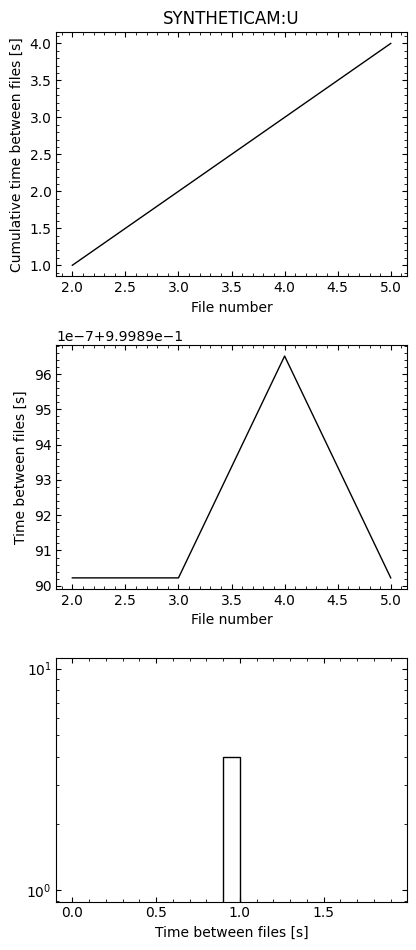

[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/darks/diag/header_times.pdf.
[OPTICAM] Creating source catalogs.
[OPTICAM] Aligning SYNTHETICAM:U images: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:01<00:00]
[OPTICAM] [OPTICAM] Done.
[OPTICAM] [OPTICAM] 5 image(s) aligned.
[OPTICAM] [OPTICAM] 0 image(s) could not be aligned.

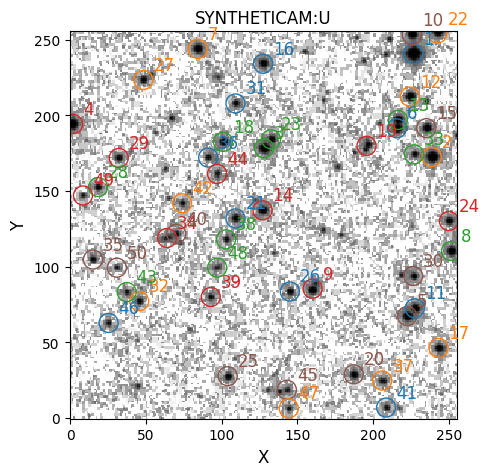

[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/darks/cat/catalogs.pdf.

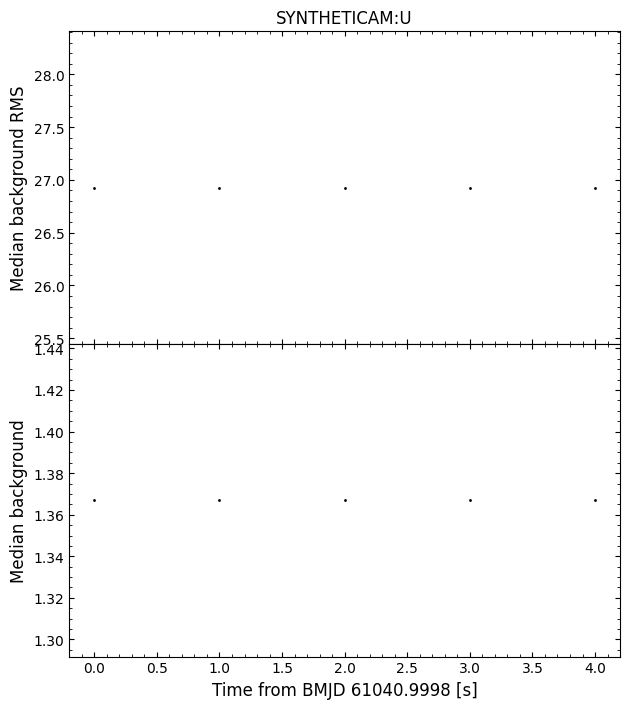

[OPTICAM] Plot saved to /tmp/tmptalj6gyx/out/reduced/darks/diag/background.pdf.
As we can see, our DarkNoiseCorrector successfully passed all checks. Similarly to FlatFieldCorrector, DarkNoiseCorrector instances are checked to ensure that any dark images have the same properties as the science images. In particular, DarkNoiseCorrector checks that the binning modes, exposure times, and filters all match those of the science images. Additionally, we can see that the median background is \(\sim 30\), suggesting that the dark noise has been successfully
removed! If the dark noise had not been removed, then the median background would have been closer to \(\sim 60\), as we saw earlier.
Bias Corrections
The OPTICAM-MX cameras perform real-time bias corrections, and so additional bias corrections are nominally not required. If you’re using opticam to reduce data from OPTICAM-MX, or another instrument that performs real-time bias corrections, then you can ignore this section. For other instruments, however, a BiasCorrector can be used to automate bias correcting. The interface for opticam.BiasCorrector is almost identical to those of opticam.FlatFieldCorrector and
opticam.BiasCorrector.
Let’s generate some bias images:
[31]:
BIAS = 100.0
for i in range(3):
image = np.zeros(IMG_SIZE) + BIAS
hdu = fits.PrimaryHDU(image)
hdu.header['BINNING'] = BINNING
hdu.header['EXPTIME'] = 0.0 # bias images should have an exposure time of 0 s
hdu.header['INSTRUME'] = 'SYNTHETICAM'
save_path = out_dir / 'calibration_images' / 'biases' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path / f'image_{i}.fits.gz'
hdu.writeto(file_path, overwrite=True)
Now let’s generate some new dark images. Our previous dark images assumed no bias, which is not the case in reality; our new dark images will therefore contain a bias:
[32]:
for i in range(3):
image = np.zeros(IMG_SIZE) + DARK_FLUX + BIAS
hdu = fits.PrimaryHDU(image) # image data
hdu.header['FILTER'] = FLTR # the observation filter
hdu.header['BINNING'] = BINNING # the image binning (1x1)
hdu.header['EXPTIME'] = EXPTIME # the exposure time in seconds
hdu.header['INSTRUME'] = 'SYNTHETICAM'
save_path = out_dir / 'calibration_images' / 'darks_with_bias' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path / f'image_{i}.fits.gz'
hdu.writeto(file_path, overwrite=True)
Now let’s generate some science images with both bias and dark noise contributions:
[33]:
# add dark noise to the image
noisy_image = base_image + DARK_FLUX + BIAS
for i in range(10):
hdu.data = noisy_image
hdu.header['FILTER'] = FLTR # the observation filter
hdu.header['BINNING'] = BINNING # the image binning (1x1)
hdu.header['EXPTIME'] = EXPTIME # the exposure time in seconds
hdu.header['RA'] = '0' # pointing of the image
hdu.header['DEC'] = '0' # pointing of the image
hdu.header['GAIN'] = 1.0 # instrument gain
hdu.header['DATE-OBS'] = f'2026-01-01T00:00:0{i}.000' # date of observation
hdu.header['INSTRUME'] = 'SYNTHETICAM'
save_path = out_dir / 'data' / 'darks_with_bias' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path.joinpath(f'image_{i}.fits.gz')
hdu.writeto(file_path, overwrite=True)

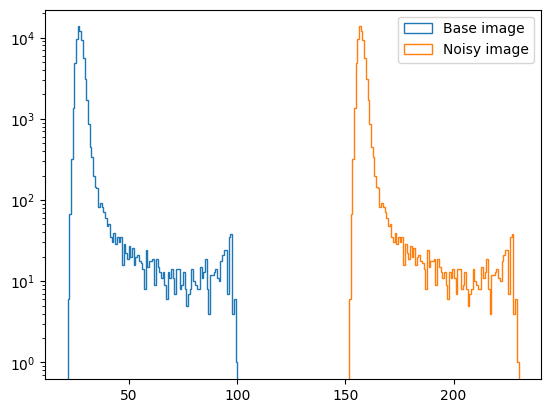

Let’s compare the image with the noisy image:
[34]:
fig, ax = plt.subplots()
ax.hist(
base_image.flatten(),
histtype='step',
bins=100,
label='Base image',
)
ax.hist(
noisy_image.flatten(),
histtype='step',
bins=100,
label='Noisy image',
)
ax.set_yscale('log')
ax.legend()
plt.show()
As we can see, there is a large offset between the base and noisy images since the noisy image now includes a bias offset in addition to the dark noise from previous example. Let’s correct this:
[35]:
bias_corr = opticam.BiasCorrector(
out_directory=out_dir / 'correctors' / 'biases',
data_directory=out_dir / 'calibration_images' / 'biases',
instrument=instrument,
)
dark_corr = opticam.DarkNoiseCorrector(
out_directory=out_dir / 'correctors' / 'darks_with_bias',
data_directory=out_dir / 'calibration_images' / 'darks_with_bias',
instrument=instrument,
)
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 3 SYNTHETICAM bias images.
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 3 SYNTHETICAM:U dark images.
[36]:
bias_corrected_image, bias_var = bias_corr.correct(
image=noisy_image,
camera='SYNTHETICAM'
)
[OPTICAM] SYNTHETICAM master bias image not found. Attempting to create.
[OPTICAM] Master bias image(s) created.
[OPTICAM] Master bias image(s) saved to out/correctors/biases/master_bias.fits.gz.

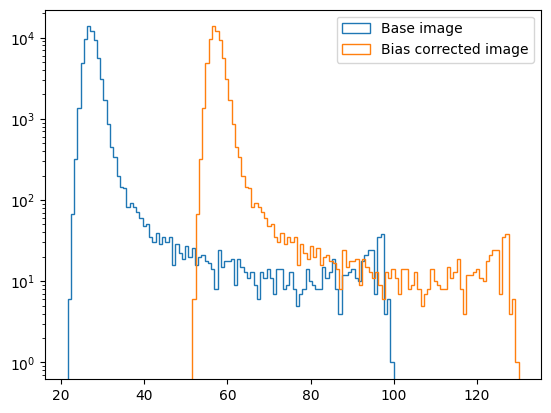

[37]:
fig, ax = plt.subplots()
ax.hist(
base_image.flatten(),
histtype='step',
bins=100,
label='Base image',
)
ax.hist(
bias_corrected_image.flatten(),
histtype='step',
bins=100,
label='Bias corrected image',
)
ax.set_yscale('log')
ax.legend()
plt.show()
We can see that the offset is smaller, but not yet zero (because we also have a dark noise contribution). Let’s correct this using our new dark noise corrector:
[38]:
bias_and_dark_corrected_image, dark_var = dark_corr.correct(
image=bias_corrected_image,
camera='SYNTHETICAM',
fltr='U',
)
[OPTICAM] SYNTHETICAM:U master dark image not found. Attempting to create.
[OPTICAM] Master dark image(s) created.
[OPTICAM] Master dark image(s) saved to out/correctors/darks_with_bias/master_darks.fits.gz.

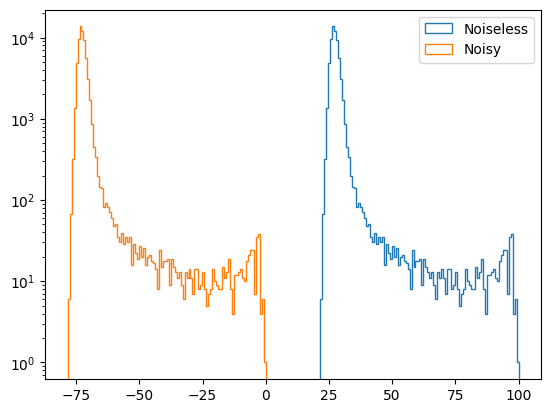

[39]:
fig, ax = plt.subplots()
ax.hist(
base_image.flatten(),
histtype='step',
bins=100,
label='Noiseless',
)
ax.hist(
bias_and_dark_corrected_image.flatten(),
histtype='step',
bins=100,
label='Noisy',
)
ax.set_yscale('log')
ax.legend()
plt.show()
Uh oh, we have negative fluxes! This is because the bias contribution is being subtracted twice: once by the master bias and again by the master dark. To fix this, we can pass a BiasCorrectorInstance to DarkNoiseCorrector:
[40]:
new_dark_corr = opticam.DarkNoiseCorrector(
out_directory=out_dir / 'correctors' / 'bias-corrected_darks',
data_directory=out_dir / 'calibration_images' / 'darks_with_bias',
instrument=instrument,
bias_corrector=bias_corr,
)
new_dark_corr.create_master_images()
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 3 SYNTHETICAM:U dark images.
[OPTICAM] Master dark image(s) created.
[OPTICAM] Master dark image(s) saved to out/correctors/bias-corrected_darks/master_darks.fits.gz.
[41]:
bias_and_dark_corrected_image_new, dark_var = new_dark_corr.correct(
image=bias_corrected_image,
camera='SYNTHETICAM',
fltr='U',
)
[42]:
fig, ax = plt.subplots()
ax.hist(
base_image.flatten(),
histtype='step',
bins=100,
label='Base image',
)
ax.hist(
bias_and_dark_corrected_image_new.flatten(),
histtype='step',
bins=100,
label='Corrected image',
ls='-.',
)
ax.set_yscale('log')
ax.legend()
plt.show()
[43]:
assert np.allclose(base_image, bias_and_dark_corrected_image_new)
Now the corrected image is identical to the reference image! Again, however, it’s worth stressing that noise is random, and so in practise it will never be removed perfectly as it has been here.
Calibrating calibration images
Above, we saw that it is necessary to bias-correct dark images. Of course, the same is also true for flat-field images. Additionally, it may be necessary to subtract the dark noise contribution from your flats if they require a longer exposure time and/or your instrument has a high dark current. Let’s generate some flats that contain bias and dark noise contributions:
[44]:
for i in range(3):
image = np.ones(IMG_SIZE) + DARK_FLUX + BIAS
hdu = fits.PrimaryHDU(image) # image data
hdu.header['FILTER'] = FLTR # the observation filter
hdu.header['BINNING'] = BINNING # the image binning (1x1)
hdu.header['EXPTIME'] = EXPTIME # the exposure time in seconds
hdu.header['INSTRUME'] = 'SYNTHETICAM'
save_path = out_dir / 'calibration_images' / 'flats_with_bias_and_dark_noise' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path / f'image_{i}.fits.gz'
hdu.writeto(file_path, overwrite=True)
These flats have a flux of 1 (to avoid division by zero) before bias and dark noise contributions are added. As such, the master flat-field image should also have a flux of 1 (assuming the bias and dark noise are corrected properly):
[45]:
flat_corr = opticam.FlatFieldCorrector(
out_directory=out_dir / 'correctors' / 'bias-corrected_and_dark-subtracted_flats',
data_directory=save_path,
bias_corrector=bias_corr, # pass bias corrector
dark_corrector=new_dark_corr,
instrument=instrument,
)
flat_corr.create_master_images()
print(flat_corr.master_images['SYNTHETICAM:U'])
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 3 SYNTHETICAM:U flat-field images.
[OPTICAM] Master flat-field image(s) created.
[OPTICAM] Master flat-field image(s) saved to out/correctors/bias-corrected_and_dark-subtracted_flats/master_flats.fits.gz.
[[1. 1. 1. ... 1. 1. 1.]
[1. 1. 1. ... 1. 1. 1.]
[1. 1. 1. ... 1. 1. 1.]
...
[1. 1. 1. ... 1. 1. 1.]
[1. 1. 1. ... 1. 1. 1.]
[1. 1. 1. ... 1. 1. 1.]]
[46]:
assert np.allclose(flat_corr.master_images['SYNTHETICAM:U'], 1.)
As we can see, all the pixels of the master flat have a flux of 1, suggesting that the bias and dark contributions were successfully removed.
When passing a DarkNoiseCorrector instance to FlatFieldCorrector, opticam also checks that the exposure times of the flats matches those of the darks; if they exposure times do not match, an error is raised:
[47]:
for i in range(3):
image = np.ones(IMG_SIZE) + DARK_FLUX + BIAS
hdu = fits.PrimaryHDU(image) # image data
hdu.header['FILTER'] = FLTR # the observation filter
hdu.header['BINNING'] = BINNING # the image binning (1x1)
hdu.header['EXPTIME'] = 3. # the exposure time in seconds
hdu.header['INSTRUME'] = 'SYNTHETICAM'
save_path = out_dir / 'calibration_images' / 'short-exposure_flats_with_bias_and_dark' # directory to which image will be saved
# create save directory if it does not already exist
if not save_path.is_dir():
save_path.mkdir(parents=True)
# save image
file_path = save_path / f'image_{i}.fits.gz'
hdu.writeto(file_path, overwrite=True)
[48]:
flat_corr = opticam.FlatFieldCorrector(
out_directory=out_dir / 'correctors' / 'short-exposure_flats',
data_directory=save_path,
bias_corrector=bias_corr, # pass bias corrector
dark_corrector=new_dark_corr,
instrument=instrument,
)
try:
flat_corr.create_master_images()
except Exception as e:
print(f'ERROR: {e}')
[OPTICAM] Scanning data directory: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████|[00:00<00:00]
[OPTICAM] 3 SYNTHETICAM:U flat-field images.
ERROR: [OPTICAM] inconsistent exposure times between flat-field images and dark images. Flat-field exposure time: 3.0 s; dark exposure time: 120.0 s.
As we can see, the master flat-field image could not be created due to incompatible exposure times between the dark and flat-field images.
That concludes the corrections tutorial for opticam! For simplicity, we largely ignored the randomness of noise and, as such, did not discuss how opticam propagates errors during calibration. To see opticam’s calibration error propagation in action, there is a dedicated notebook.
