Local background estimation

opticam_new supports specification of local background estimators, which can improve the background estimation in cases where the background varies considerably across an image. In this notebook, I will demonstrate how to define a local background estimator for use with opticam_new, as well as explain opticam_new’s default local background estimator.

Generating Data

First thing’s first, we need to generate some dummy data:

[1]:

import opticam_new

opticam_new.generate_observations(
    out_dir='local_backgrounds_tutorial/data',
    n_images=20,
    circular_aperture=False,
    )

[OPTICAM] variable source is at (122, 104)

Generating observations: 100%|██████████|[00:04<00:00]

Now we can use these dummy observations to compute and compare local backgrounds.

Generating Catalogs

Before we can look at the local background estimator, we need to create our source catalogs:

[2]:

cat = opticam_new.Catalog(
    data_directory='local_backgrounds_tutorial/data',
    out_directory='local_backgrounds_tutorial/reduced',
    remove_cosmic_rays=False,
    )

[OPTICAM] local_backgrounds_tutorial/reduced not found, attempting to create ...
[OPTICAM] local_backgrounds_tutorial/reduced created.

[OPTICAM] Scanning data directory: 100%|██████████|[00:00<00:00]

[OPTICAM] Binning: 4x4
[OPTICAM] Filters: g-band, r-band, i-band
[OPTICAM] 20 g-band images.
[OPTICAM] 20 r-band images.
[OPTICAM] 20 i-band images.

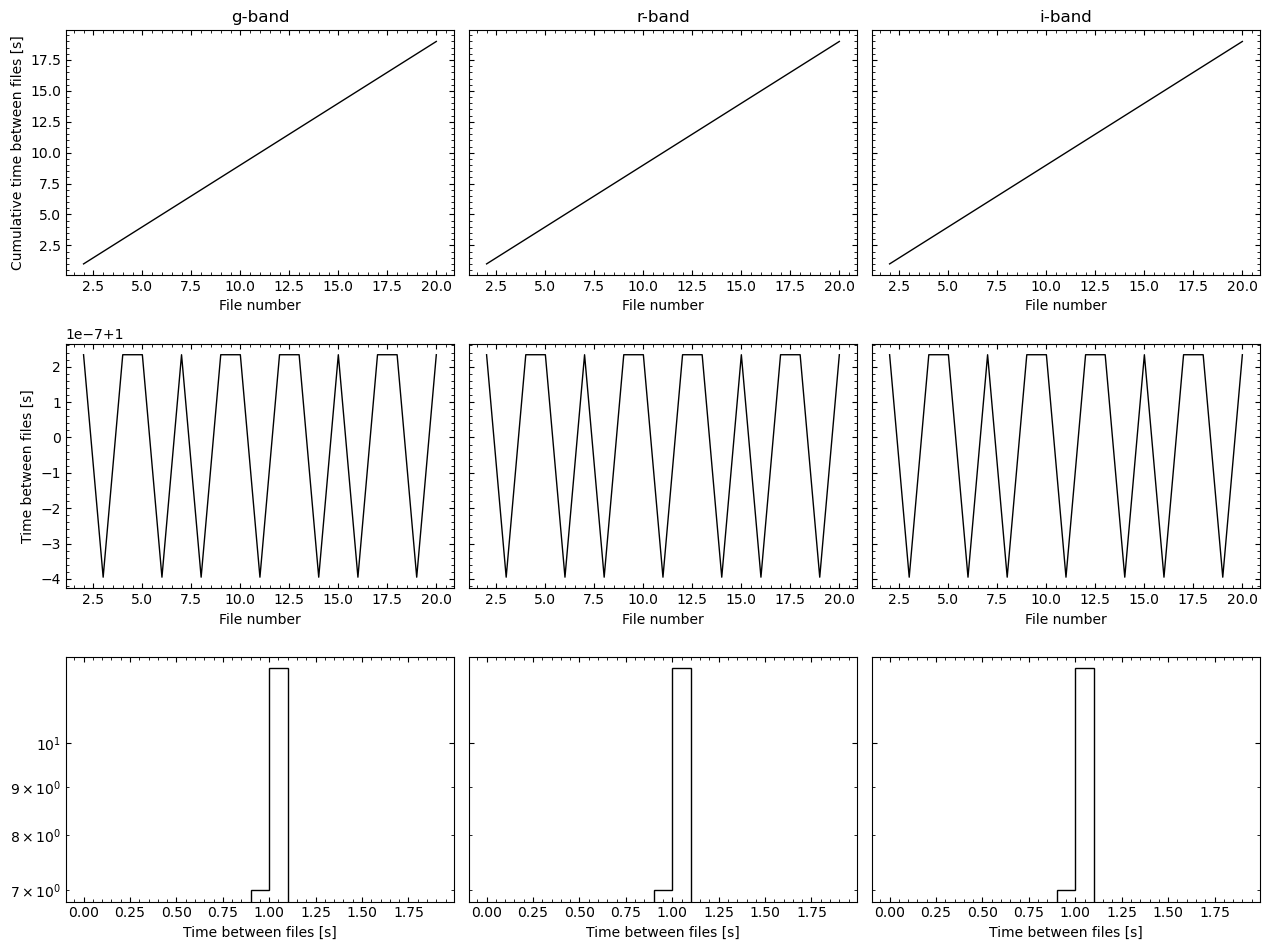

../_images/tutorials_local_backgrounds_3_4.png

[3]:

cat.create_catalogs()

[OPTICAM] Initialising catalogs

[OPTICAM] Aligning g-band images: 100%|██████████|[00:00<00:00]

[OPTICAM] Done.
[OPTICAM] 20 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.

[OPTICAM] Aligning r-band images: 100%|██████████|[00:00<00:00]

[OPTICAM] Done.
[OPTICAM] 20 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.

[OPTICAM] Aligning i-band images: 100%|██████████|[00:00<00:00]

[OPTICAM] Done.
[OPTICAM] 20 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.

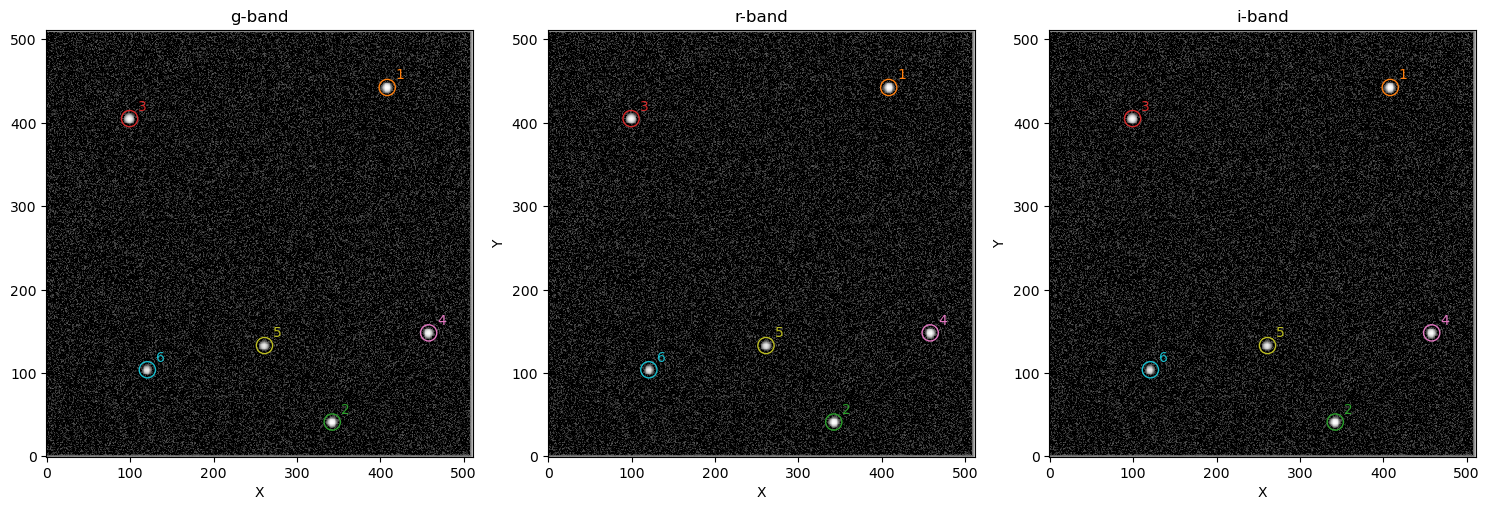

../_images/tutorials_local_backgrounds_4_7.png

`DefaultLocalBackground`

Now we look at the default local background estimator, DefaultLocalBackground. The default local background estimator uses an elliptical annulus that scales the semimajor_sigma and semiminor_sigma parameters of the catalogue’s psf_params dictionary. Let’s see what this dictionary looks like:

[5]:

cat.psf_params

[5]:

{'g-band': {'semimajor_sigma': np.float64(1.947867010701578),
  'semiminor_sigma': np.float64(1.9362408131678852),
  'orientation': np.float64(47.13371883619817)},
 'r-band': {'semimajor_sigma': np.float64(1.9478670106350826),
  'semiminor_sigma': np.float64(1.9362408131119144),
  'orientation': np.float64(47.152263419301484)},
 'i-band': {'semimajor_sigma': np.float64(1.9478670107825269),
  'semiminor_sigma': np.float64(1.936240813226689),
  'orientation': np.float64(47.17119043872118)}}

We can see that all three cameras have the same PSF parameters, since these simulated data are the same for each camera. In practise, the PSF parameters will generally be different between cameras.

We can see each camera has three PSF parameters:

semimajor_sigma: the standard deviation of the PSF along the semi-major axis (assuming a 2D Gaussian PSF)
semiminor_sigma: the standard deviation of the PSF along the semi-minor axis (assuming a 2D Gaussian PSF)
orientation: the orientation of the PSF in degrees

When defining a custom local background estimator, it’s a good idea to use these values to define your annulus (more on this later). For now, let’s perform photometry using the default local background estimator:

[6]:

phot = opticam_new.OptimalPhotometer(
    local_background_estimator=opticam_new.DefaultLocalBackground(),
)

cat.photometry(phot)

[OPTICAM] Photometry results will be saved to optimal_annulus_light_curves in local_backgrounds_tutorial/reduced.

[OPTICAM] Performing photometry on g-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Performing photometry on r-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Performing photometry on i-band images: 100%|██████████|[00:00<00:00]

Let’s take a look at the resulting light curve file for a random source:

[7]:

import pandas as pd

default_g_band_source_2_df = pd.read_csv(
    'local_backgrounds_tutorial/reduced/optimal_annulus_light_curves/g-band_source_2.csv',
    )

default_g_band_source_2_df

[7]:

	flux	flux_err	background	background_err	BMJD
0	432.999425	10.673493	100.541360	9.986540	60310.000000
1	433.165506	10.905346	98.669093	10.235830	60310.000012
2	431.942271	10.963515	100.166224	10.298477	60310.000023
3	431.465017	9.964454	99.602199	9.228097	60310.000035
4	434.025681	10.709357	101.071948	10.023068	60310.000046
5	432.006028	10.339840	99.736465	9.632121	60310.000058
6	429.911557	10.072193	100.981359	9.345138	60310.000069
7	431.166918	10.540508	100.106304	9.848330	60310.000081
8	431.436103	10.140895	99.966898	9.418578	60310.000093
9	429.945455	11.011182	101.971043	10.348042	60310.000104
10	433.208687	9.382505	100.238254	8.592982	60310.000116
11	432.252908	10.341411	100.470962	9.631887	60310.000127
12	433.925916	11.075005	99.826508	10.414112	60310.000139
13	433.588557	10.043910	100.640733	9.309566	60310.000150
14	432.451536	11.068595	99.581468	10.410437	60310.000162
15	433.622799	11.497434	99.335452	10.863324	60310.000174
16	434.072779	11.780972	99.630559	11.161835	60310.000185
17	432.774604	10.741582	99.689833	10.059892	60310.000197
18	434.283844	10.639444	99.759756	9.949243	60310.000208
19	433.472601	10.069855	99.464752	9.340178	60310.000220

We can see that the light curve file has background and background_err columns, which are only included if a local background estimator was used to compute the light curve. The average background is about 100, which is the expected value, and the average background error is about \(\sqrt{100} = 10\), which is also the expected value, showing that the default local background estimator is working well.

Custom Local Background

The default local background estimator uses the mean and standard deviation in the sigma-clipped annulus to estimate the background and its error, respectively. We will therefore define a custom local background estimator that works slightly differently, using the median instead of the mean, and the median absolute deviation instead of the standard deviation.

To define a custom local background estimator, you should either inherit from the BaseLocalBackground base class, or define a class that implements a __call__() method with the following input parameters:

data: the image data as a 2D numpy array
error: the error in the image data as a 2D numpy array
position: the position of a source as a tuple (x, y)
semimajor_axis: the semi-major standard deviation of the PSF (assumed to be a 2D Gaussian)
semiminor_axis: the semi-minor standard deviation of the PSF (assumed to be a 2D Gaussian)
orientation: the orientation of the PSF in degrees

For simplicity, I will inherit from the base class since this is how I’d recommend defining a custom local background estimator:

[9]:

from opticam_new.reduction.local_background import BaseLocalBackground

from photutils.aperture import EllipticalAnnulus, ApertureStats

class CustomLocalBackground(BaseLocalBackground):

    def __call__(
        self,
        data,  # the image data as a 2D numpy array
        error,  # the error in the image data as a 2D numpy array
        position,  # the position of a source as a tuple (x, y)
        semimajor_axis,  # the semimajor axis of the PSF in pixels (assuming a 2D Gaussian PSF)
        semiminor_axis,  # the semiminor axis of the PSF in pixels (assuming a 2D Gaussian PSF)
        orientation,  # the orientation of the PSF in degrees
        ):

        # define the annulus using photutils
        annulus = EllipticalAnnulus(
            positions=position,
            a_in=self.r_in_scale * semimajor_axis,
            a_out=self.r_out_scale * semimajor_axis,
            b_in=self.r_in_scale * semiminor_axis,
            b_out=self.r_out_scale * semiminor_axis,
            theta=orientation,
        )

        # compute the statistics in the annulus
        stats = ApertureStats(
            data,
            annulus,
            error=error,
            sigma_clip=self.sigma_clip,
        )

        median_local_background = float(stats.median)

        # median absolute deviation (MAD) of the local background
        mad_std_local_background = float(stats.mad_std)

        return median_local_background, mad_std_local_background

When inheriting from the BaseLocalBackground base class, there is no need to implement an __init__() method.

The order of the parameters in the __call__() method is important, since opticam_new’s photometry routines assume a local background estimator’s __call__() method takes the above parameters in the above order. These parameters are handled by the catalogue, and so you don’t need to worry about computing them. In particular, the semimajor_axis, semiminor_axis, and orientation parameters are passed from the catalogue’s psf_params dictionary using the appropriate values for the camera corresponding to the image, so you don’t need to worry about unpacking this dictionary.

Finally, there is no requirement to use photutils for estimating local backgrounds, but photutils does make it a lot easier.

Let’s now perform photometry using our custom local background estimator:

[10]:

from astropy.stats import SigmaClip

custom_phot = opticam_new.OptimalPhotometer(
    local_background_estimator=CustomLocalBackground(
        r_in_scale=5,
        r_out_scale=6,
        sigma_clip=SigmaClip(
            sigma=3,
            maxiters=10,
            ),
        ),
)

cat.photometry(custom_phot)

[OPTICAM] Photometry results will be saved to optimal_annulus_light_curves in local_backgrounds_tutorial/reduced.

[OPTICAM] Performing photometry on g-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Performing photometry on r-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Performing photometry on i-band images: 100%|██████████|[00:00<00:00]

[11]:

custom_g_band_source_2_df = pd.read_csv(
    'local_backgrounds_tutorial/reduced/optimal_annulus_light_curves/g-band_source_2.csv',
    )

custom_g_band_source_2_df

[11]:

	flux	flux_err	background	background_err	BMJD
0	431.851133	11.442116	101.689652	10.804145	60310.000000
1	434.001516	10.229813	97.833082	9.512871	60310.000012
2	431.630545	10.741558	100.477951	10.061861	60310.000023
3	431.275066	9.604017	99.792150	8.837679	60310.000035
4	434.935973	9.908621	100.161657	9.162550	60310.000046
5	432.821894	10.756675	98.920598	10.078270	60310.000058
6	430.910770	10.220638	99.982146	9.504944	60310.000069
7	430.927339	11.450960	100.345884	10.817199	60310.000081
8	431.325232	11.154775	100.077770	10.502422	60310.000093
9	430.179853	9.423111	101.736645	8.638915	60310.000104
10	433.081687	10.431433	100.365254	9.727422	60310.000116
11	431.612039	9.632335	101.111831	8.866247	60310.000127
12	435.330265	10.517162	98.422159	9.818792	60310.000139
13	434.030394	10.933374	100.198896	10.262873	60310.000150
14	431.408444	11.198730	100.624560	10.548694	60310.000162
15	433.000181	10.971761	99.958070	10.305356	60310.000174
16	433.630169	11.667831	100.073168	11.042352	60310.000185
17	431.732221	11.156288	100.732216	10.501553	60310.000197
18	434.233694	11.975030	99.809906	11.366223	60310.000208
19	433.103346	10.593071	99.834007	9.902025	60310.000220

Again, the background and its error are both close to the expected values. Let’s therefore compare the local background estimations more clearly:

[15]:

from matplotlib import pyplot as plt

fig, axes = plt.subplots(
    nrows=2,
    tight_layout=True,
    sharex=True,
    )

axes[0].plot(
    default_g_band_source_2_df['BMJD'],
    default_g_band_source_2_df['background'],
    label='Default',
)
axes[0].plot(
    custom_g_band_source_2_df['BMJD'],
    custom_g_band_source_2_df['background'],
    label='Custom',
)
axes[0].axhline(
    100,
    color='k',
    zorder=0,
)

axes[1].plot(
    default_g_band_source_2_df['BMJD'],
    default_g_band_source_2_df['background_err'],
    label='Default',
)
axes[1].plot(
    custom_g_band_source_2_df['BMJD'],
    custom_g_band_source_2_df['background_err'],
    label='Custom',
)
axes[1].axhline(
    10,
    color='k',
    zorder=0,
)

axes[1].set_xlabel('BMJD [days]')
axes[0].set_ylabel('Background [Counts]')
axes[1].set_ylabel('Background error [Counts]')

axes[0].legend()
axes[1].legend()

plt.show()

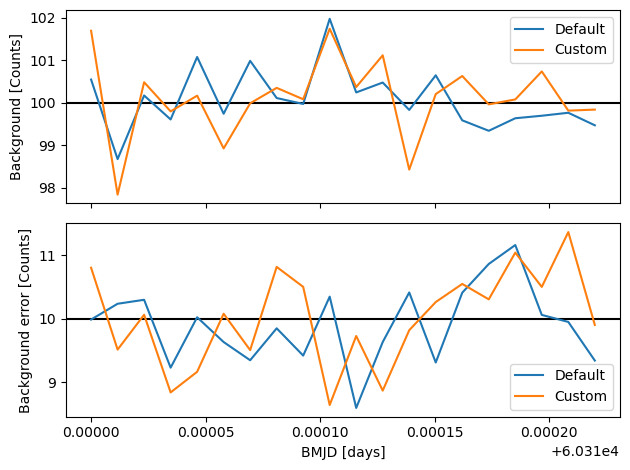

../_images/tutorials_local_backgrounds_17_0.png

As we can see, both methods are around the expected values, and so either local background estimator would likely give pretty good results in practise.

That concludes the local background tutorial for opticam_new! The default local background estimator should be “good enough” in most cases, but we have seen how to implement custom local background estimators if required. Once again, I refer to the excellent photutils documentation for further details on implementing custom local background estimators: https://photutils.readthedocs.io/en/stable/user_guide/aperture.html#local-background-subtraction.
