Applying flat-field corrections
opticam_new provides a simple interface for creating and applying image corrections (currently limited to flat-field corrections).
In this notebook, I will demonstrate how to create a master flat, and how this master flat can be incorporated into the reduction process.
Generating Synthetic Data and Flats
Before applying flat-field corrections, we need some flat-field images. For this tutorial, I will use the generate_flats() routine to generate some synethetic flats. I will also generate some synthetic observations using generate_observations() with circular_aperture=True to impose a circular aperture shadow onto the images:
[1]:
import opticam_new
opticam_new.generate_observations(
out_dir='corrections_tutorial/data',
n_images=10, # number of images per camera
circular_aperture=True, # impose circular aperture shadow on images
)
opticam_new.generate_flats(
out_dir='corrections_tutorial/flats',
n_flats=5, # number of flats per camera
)
[OPTICAM] variable source is at (122, 104)
Generating observations: 100%|██████████|[00:02<00:00]
Generating flats: 100%|██████████|[00:00<00:00]
Let’s check if our newly created flats are where they should be:
[2]:
import os
flats = sorted(os.listdir('corrections_tutorial/flats'))
for file in flats[:3]:
print(file)
g-band_flat_0.fits.gz
g-band_flat_1.fits.gz
g-band_flat_2.fits.gz
We have flats! Note that these files are compressed using gzip to reduce disk space. FITS files do not need to be unzipped to be compatible with opticam_new since astropy.io.fits, which is used by opticam_new to handle FITS files, can seamlessly open fits.gz files.

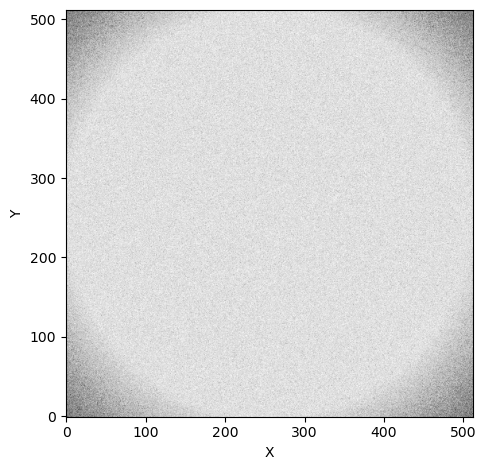

Let’s take a look at one of our newly-generated flats:
[3]:
from astropy.io import fits
from astropy.visualization import simple_norm
from matplotlib import pyplot as plt
import numpy as np
# open the first flat field image
file = flats[0]
with fits.open(f'corrections_tutorial/flats/{file}') as hdul:
print(repr(hdul[0].header))
flat = np.array(hdul[0].data)
# plot the flat field image
fig, ax = plt.subplots(tight_layout=True)
im = ax.imshow(
flat,
norm=simple_norm(
flat,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
SIMPLE = T / conforms to FITS standard
BITPIX = -64 / array data type
NAXIS = 2 / number of array dimensions
NAXIS1 = 512
NAXIS2 = 512
EXTEND = T
FILTER = 'g '
BINNING = '4x4 '
GAIN = 1.0
UT = '2024-01-01 00:00:00'

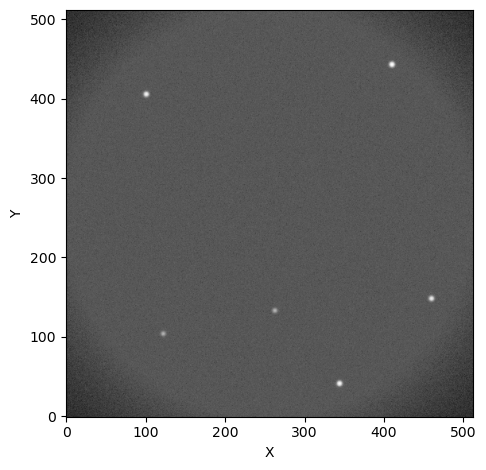

These synthetic flats show a circular shadow that you might imagine was caused by the telescope’s circular aperture. We also see this shadow in the synthetic observations created by opticam_new.generate_observations():
[4]:
# get the first image
files = sorted(os.listdir('corrections_tutorial/data'))
file = files[0]
# open the image
with fits.open(f"corrections_tutorial/data/{file}") as hdul:
image = np.array(hdul[0].data)
# plot the image
fig, ax = plt.subplots(tight_layout=True)
im = ax.imshow(
image,
norm=simple_norm(
image,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
Just like in the flats, we see a circular shadow at the corners of the image.
Applying Flat-field Corrections
In opticam_new, flat-field corrections are handled by an opticam_new.FlatFieldCorrector object. Like opticam_new.Catalog, opticam_new.FlatFieldCorrector will split flats by filter if they are all stored in a single directory, or separate directories can be specified for each filter’s flats. In this example, all flats are stored in a single directory:
[5]:
flat_corrector = opticam_new.FlatFieldCorrector(
out_dir='corrections_tutorial/correctors', # where the master flat field images will be stored
flats_dir='corrections_tutorial/flats', # where the flat field images are stored
)
[OPTICAM] 5 i-band flat-field images.
[OPTICAM] 5 r-band flat-field images.
[OPTICAM] 5 g-band flat-field images.
When defining a FlatFieldCorrector object, an out_dir must be specified. This is the directory to which any output files (e.g., the master flats) will be written.
After creating a FlatFieldCorrector instance, you will be able to see how many flats have been detected for each camera. In this case, we can see that each filter has five flat-field images.
Creating Master Flats (Long Way)
Now that we have a FlatFieldCorrector instance, we can either create master flats manually, or pass the FlatFieldCorrector object to a Catalog instance, which will automatically create the master flats for us if they do not already exist. In this example, let’s create the master flats manually:
[6]:
flat_corrector.create_master_flats()

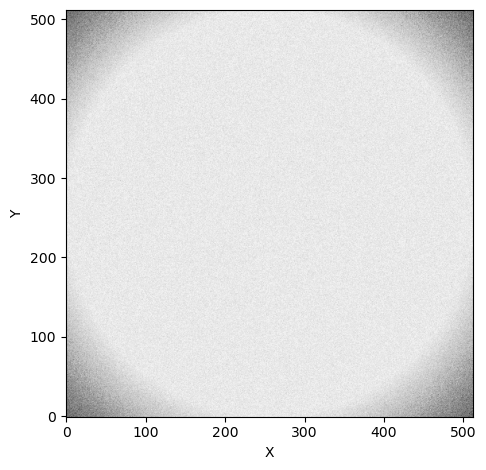

Let’s take a look at these master flats. We can either read the master flats from their new directory:
[7]:
flats = sorted(os.listdir('corrections_tutorial/correctors/master_flats'))
for file in flats:
print(file)
g-band_master_flat.fit.gz
i-band_master_flat.fit.gz
r-band_master_flat.fit.gz
where we can see that each master flat file has also been compressed using gzip, or we can access the master flats directly from flat_corrector using the master_flats attribute:
[8]:
master_flat = flat_corrector.master_flats['g-band']
fig, ax = plt.subplots(tight_layout=True)
im = ax.imshow(
master_flat,
norm=simple_norm(
master_flat,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()

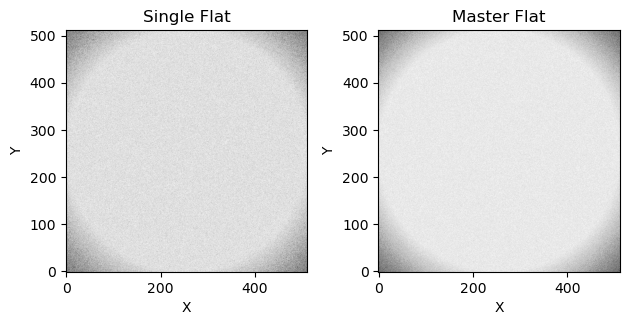

While not immediately obvious, you should be able to see that the master flat is less noisy than the individual flat shown above:
[9]:
fig, axes = plt.subplots(ncols=2, tight_layout=True)
axes[0].imshow(
flat,
norm=simple_norm(
flat,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
axes[0].set_title("Single Flat")
axes[1].imshow(
master_flat,
norm=simple_norm(
master_flat,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
axes[1].set_title("Master Flat")
for ax in axes:
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
Performing Flat-field Corrections

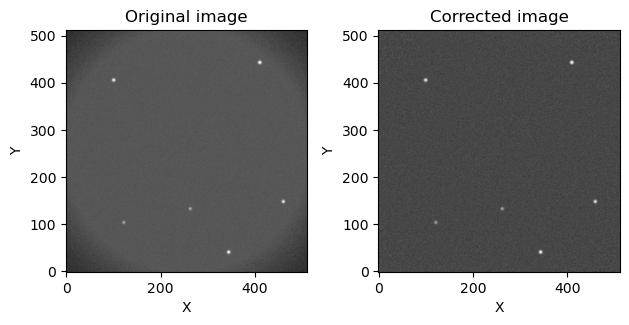

Let’s now use flat_corrector to correct an image:
[10]:
with fits.open(f'corrections_tutorial/data/{files[0]}') as hdul:
fltr = hdul[0].header['FILTER'] + '-band'
image = np.array(hdul[0].data)
fig, axes = plt.subplots(
ncols=2,
tight_layout=True,
)
axes[0].imshow(
image,
norm=simple_norm(
image,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
axes[0].set_title('Original image')
corrected_image = flat_corrector.correct(image, fltr)
axes[1].imshow(
corrected_image,
norm=simple_norm(
corrected_image,
stretch="sqrt",
),
origin="lower",
cmap="Greys_r",
)
axes[1].set_title('Corrected image')
for ax in axes:
ax.set_xlabel("X")
ax.set_ylabel("Y")
plt.show()
As we can see, the aperture shadow has been removed!
We can automate the process of applying master flats by passing an opticam_new.FlatFieldCorrector instance to opticam_new.Catalog:
[11]:
cat = opticam_new.Catalog(
data_directory='corrections_tutorial/data', # path to the simulated data
out_directory='corrections_tutorial/reduced', # path to where output will be saved
show_plots=True,
flat_corrector=flat_corrector, # pass the flat field corrector
remove_cosmic_rays=False,
)
[OPTICAM] corrections_tutorial/reduced not found, attempting to create ...
[OPTICAM] corrections_tutorial/reduced created.
[OPTICAM] Scanning data directory: 100%|██████████|[00:00<00:00]
[OPTICAM] Binning: 4x4
[OPTICAM] Filters: g-band, r-band, i-band
[OPTICAM] 10 g-band images.
[OPTICAM] 10 r-band images.
[OPTICAM] 10 i-band images.

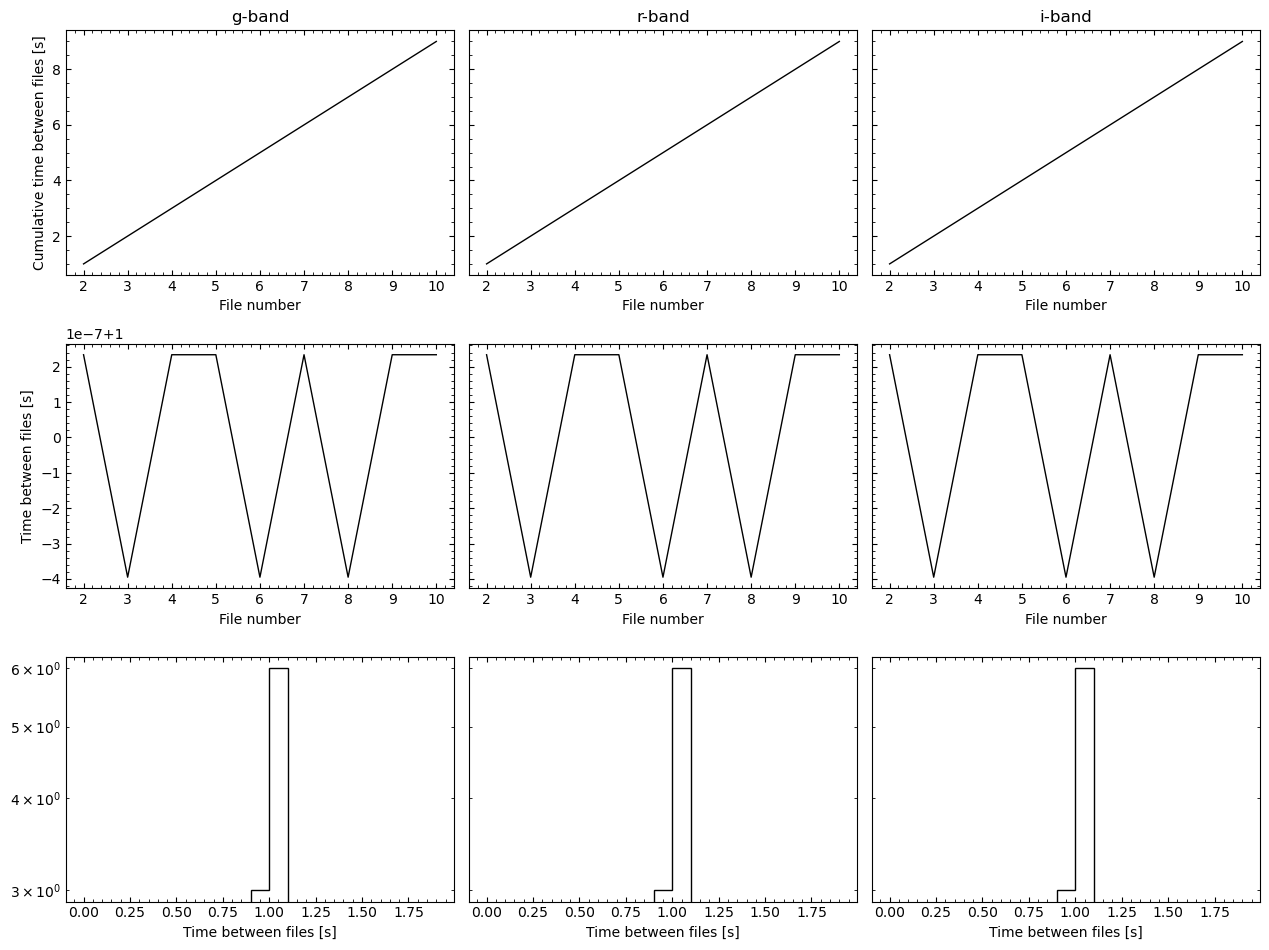

[12]:
cat.create_catalogs()
[OPTICAM] Initialising catalogs
[OPTICAM] Aligning g-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Done.
[OPTICAM] 10 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning r-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Done.
[OPTICAM] 10 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning i-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Done.
[OPTICAM] 10 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.

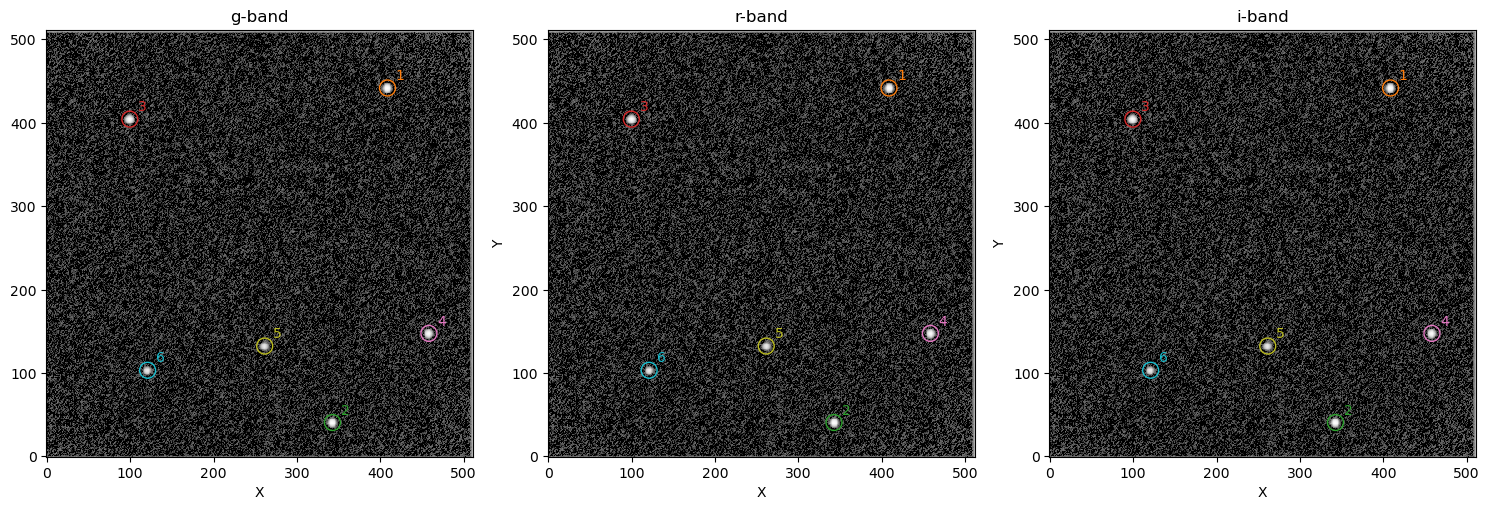

As we can see, the catalog images also do not show an aperture shadow.
Creating Master Flats (Short Way)
We can create master flat-field images with fewer lines of code by letting opticam_new handle the master flat creation automatically:
[13]:
auto_flat_corrector = opticam_new.FlatFieldCorrector(
out_dir='corrections_tutorial/correctors_auto', # where the master flat field images will be stored
flats_dir='corrections_tutorial/flats', # where the flat field images are stored
)
cat = opticam_new.Catalog(
data_directory='corrections_tutorial/data', # path to the simulated data
out_directory='corrections_tutorial/reduced_auto', # path to where output will be saved
show_plots=True,
flat_corrector=auto_flat_corrector, # pass the flat field corrector
remove_cosmic_rays=False,
)
[OPTICAM] 5 i-band flat-field images.
[OPTICAM] 5 r-band flat-field images.
[OPTICAM] 5 g-band flat-field images.
[OPTICAM] corrections_tutorial/reduced_auto not found, attempting to create ...
[OPTICAM] corrections_tutorial/reduced_auto created.
[OPTICAM] Scanning data directory: 100%|██████████|[00:00<00:00]
[OPTICAM] Binning: 4x4
[OPTICAM] Filters: g-band, r-band, i-band
[OPTICAM] 10 g-band images.
[OPTICAM] 10 r-band images.
[OPTICAM] 10 i-band images.
Currently, the flat corrector has not been used, and so if we check for the master flats we will find that they don’t yet exist:
[14]:
os.path.isdir('corrections_tutorial/correctors_auto/master_flats')
[14]:
False
However, if we initialise the catalog we will see that the master flats will be created automatically so that they can be applied to the images:
[15]:
cat.create_catalogs()
[OPTICAM] Initialising catalogs
[OPTICAM] g-band master flat-field image not found. Attempting to create...
[OPTICAM] Master flat-field image created.
[OPTICAM] Aligning g-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Done.
[OPTICAM] 10 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning r-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Done.
[OPTICAM] 10 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.
[OPTICAM] Aligning i-band images: 100%|██████████|[00:00<00:00]
[OPTICAM] Done.
[OPTICAM] 10 image(s) aligned.
[OPTICAM] 0 image(s) could not be aligned.
As we can see, the master flats were created and the corrections were applied. For completeness, let’s also check if the master flats directory now exists:
[16]:
os.path.isdir('corrections_tutorial/correctors_auto/master_flats')
[16]:
True
With just a few lines of code, we have created master flats and used them to correct our observation images!
That concludes the corrections tutorial for opticam_new! Currently, image corrections are limited to flat-field corrections, but we plan to include more complete CCD corrections in future.
